Fuses & Circuit Protection
ANL, MRBF, and mega fuses plus fuse blocks and circuit breakers to protect your 12V system from shorts and overcurrent faults.
Every wire in a 12V system needs a fuse sized to protect the wire — not the device at the other end. A short circuit in a poorly fused system can dump hundreds of amps into a battery cable and start a fire in seconds. Fusing is the single cheapest, most effective safety measure you can add to any RV, van, or boat build. The main fuse goes within inches of the battery positive terminal (MRBF or Class-T for lithium, ANL or mega for lead-acid). Branch circuits get their own fuse block downstream. Done right, the fuses blow first and everything else stays safe.
Top 5 Compared
| Product | Rating | Price | |
|---|---|---|---|
| Blue Sea Systems 5503 ANL Fuse Block 35-750A | ★★★★ ★ 4.8 | $38 | View |
| Blue Sea Systems 5001 MEGA/AMG Fuse Block 100-300A | ★★★★ ★ 4.7 | $32 | View |

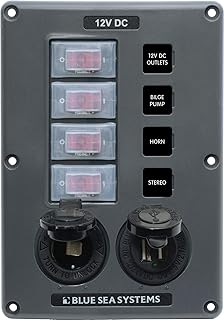

| Blue Sea Systems 4321 Circuit Breaker Switch Panel | ★★★★ ★ 4.6 | $89 | View |

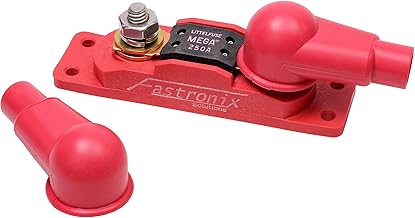

| Fastronix 250A MEGA/AMG Fuse Holder Kit | ★★★★ ★ 4.5 | $24 | View |
| Dual Terminal MRBF Fuse Block 30-300A Marine Rated | ★★★★ ★ 4.4 | $35 | View |
All Fuses & Circuit Protection
Fuses & Circuit Protection Buyer's Guide
Main battery fuse — MRBF, ANL, or Class-T
MRBF (Marine Rated Battery Fuse) bolts directly to the positive battery terminal and is the cleanest solution for smaller banks. ANL fuses handle higher amperages (up to 750A) and are ideal for inverters 2000W and up. Class-T fuses have the highest interrupt rating and are required for LiFePO4 banks over 200Ah because lithium can dump massive short-circuit current that lesser fuses can't safely interrupt.
Sizing the main fuse
Rule of thumb: the fuse should be sized at 1.25x the maximum continuous current the circuit will draw, and rated below the wire's ampacity. A 2000W inverter pulling ~180A at full load needs a 250A fuse on 2/0 welding cable. Always protect the wire first — a fuse that blows before the wire melts is doing its job.

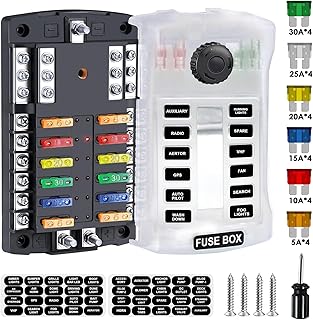

Fuse blocks for branch circuits
Downstream of the main fuse, use a fuse block (Blue Sea 5025, 5026, or similar) to distribute power to individual circuits — lights, pump, fridge, USB outlets. Each branch gets its own appropriately-sized blade fuse (ATC/ATO). Blue Sea Systems is the industry standard but budget alternatives exist with proper marine-rated terminals.
